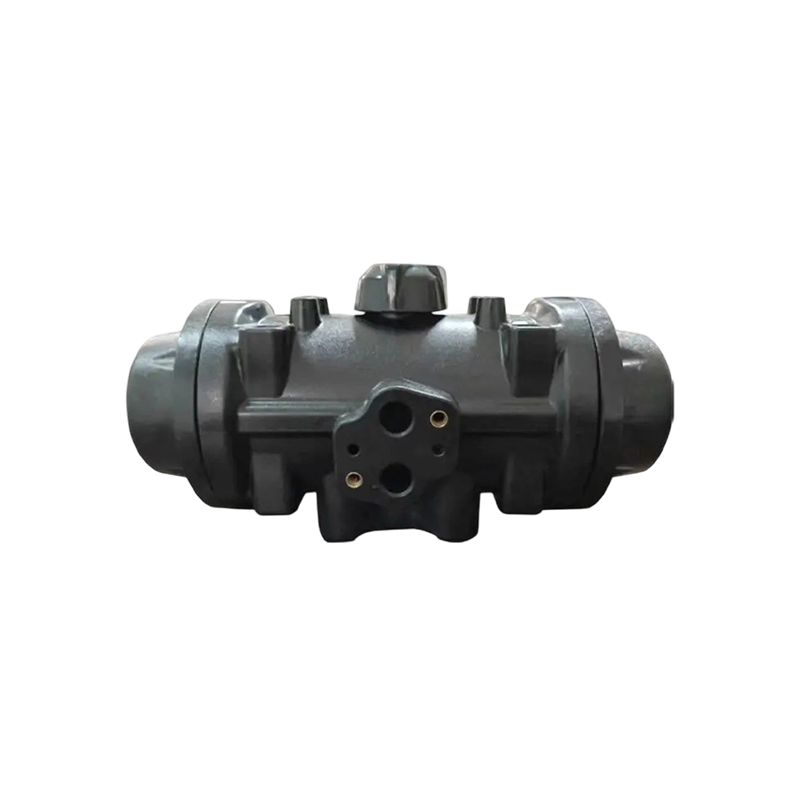

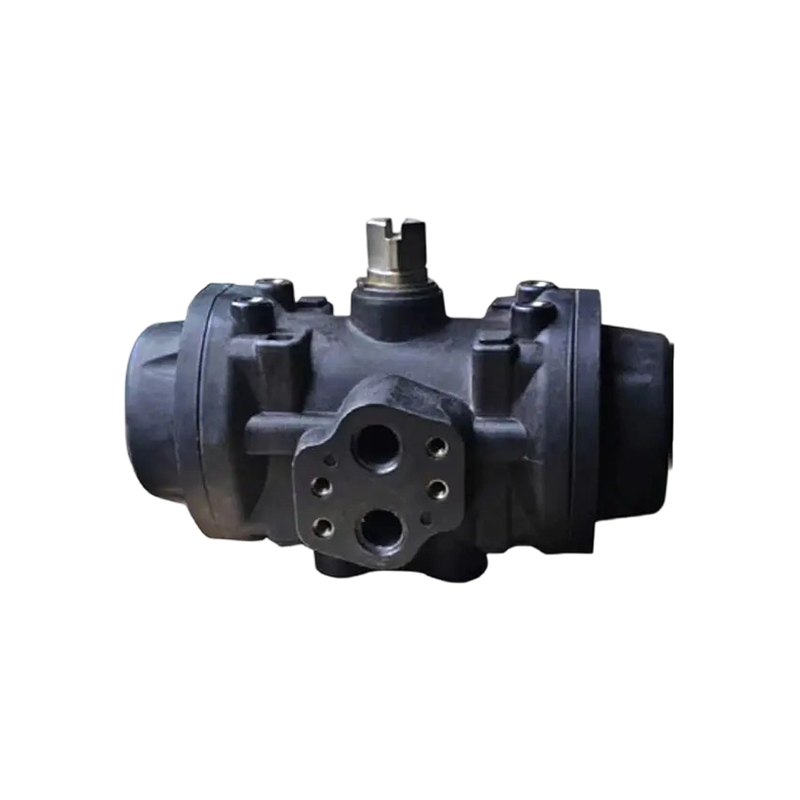

Aktuator Pneumatik Plastik Tahan Korosi

  • Bodi plastik tahan korosi, tahan terhadap berbagai jenis korosi lingkungan
  • Ringan dan mudah dipasang, 1/2 berat silinder aluminium dan 1/5 berat silinder baja tahan karat.
  • Dimensi koneksi sesuai dengan ISO 5211, standar NAMUR.
PRAV：Katup non-standar BERIKUTNYA：Saringan Tipe T
  • Suku Cadang & Bahan

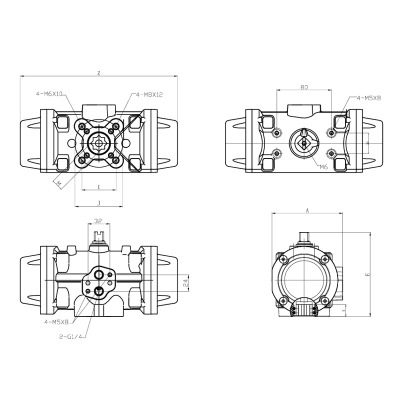

  • Dimensi & Spesifikasi
  • Deskripsi
  • Pilihan
  • Pertanyaan Umum
  • Hubungi Kami

Torsi Ootput Aktor Akting Ganda（nm）

Ketik Tekanan Udara (BAR)
3 4 5 5.5 6 7
PLT05DA 13.3 18.3 23.4 26 28.5 33.6
PLT07DA 32.9 45.6 58.3 65 71 83.7
PLT09DA 77.7 107 436.3 150.9 165.4 194.8

Model Waktu pembukaan/penutupan
PLT05DA 0.4
PLT07DA 0.5
PLT09DA 0.6
PLT05SR 0.5
PLT07SR 0.6
PLT09SR 0.8

Torsi Ootput Aktor Akting Tunggal（nm）

Tekanan Udara (BAR) 4 5 6 7 Torsi Musim Semi
Ketik Jumlah Musim Semi mulai akhir mulai akhir mulai akhir mulai akhir mulai akhir
PLT05SR 10 7.6 2.5 12.7 7.6 17.8 12.7 22.9 17.8 15.8 10.7
8 9.6 5.7 14.7 10.8 19.8 15.9 24.9 21 12.6 8.7
PLT07SR 10 19.9 7.6 32.6 20.3 45.3 33 58 45.7 38 25.7
8 25.1 15.2 37.8 27.9 50.5 40.6 63.2 53.3 30.4 20.5
PLT09SR 10 52.2 19.8 81.5 49.1 110.7 78.3 140 107.6 87.2 54.8
8 63.1 37.2 92.4 66.5 121.6 95.7 150.9 125 69.8 43.9
